PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane

The types of PCD/CBN inserts commonly used for milling cylinder heads and cylinder blocks are: RNGN060300, RNGN090300, RNGN120300, RNGN120400, RCGN060300, RCGN090300, RCGN120300, RCGN120400.

——Exceptionally high abrasion resistance and good surface finish.

——Outstanding impact strength and good tool life.

——Professional manufacturing, standard size, stable and reliable.

Product Description

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图1)

Product Name	CBN/PCD Inserts
Material	Cubic Boron Nitride/Diamond
Processing procedure	Roughing and finishing are available
machining workpiece	Cylinder head, cylinder block
Processing part	Flat
Advantage	Wear-resistant, long life, high efficiency, high precision
Common models	Solid-RNGN, RCGN, Fully veneer-RNGN

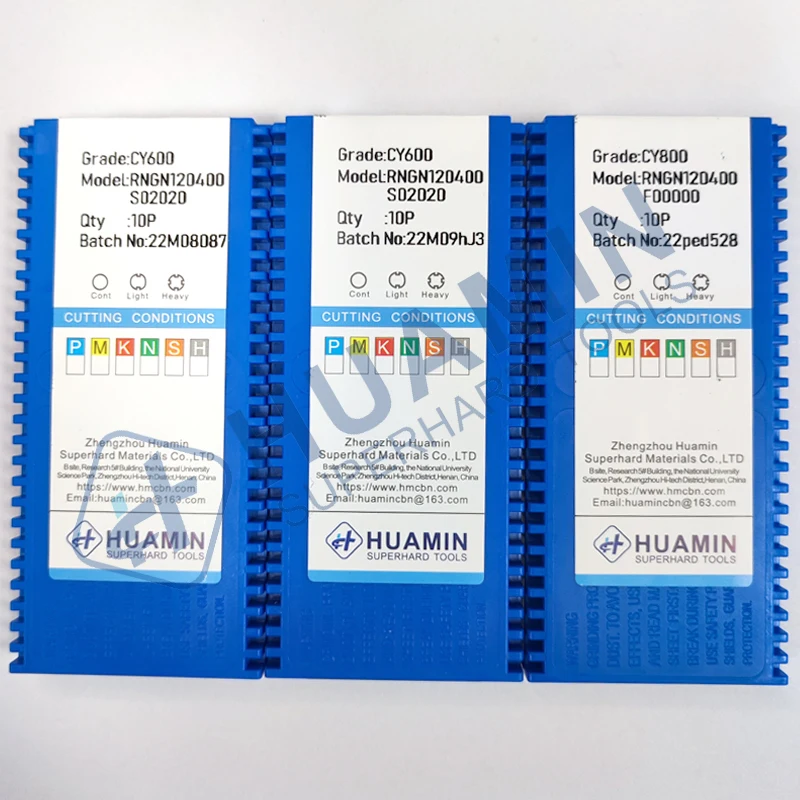

Package	10pcs/box

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图2)

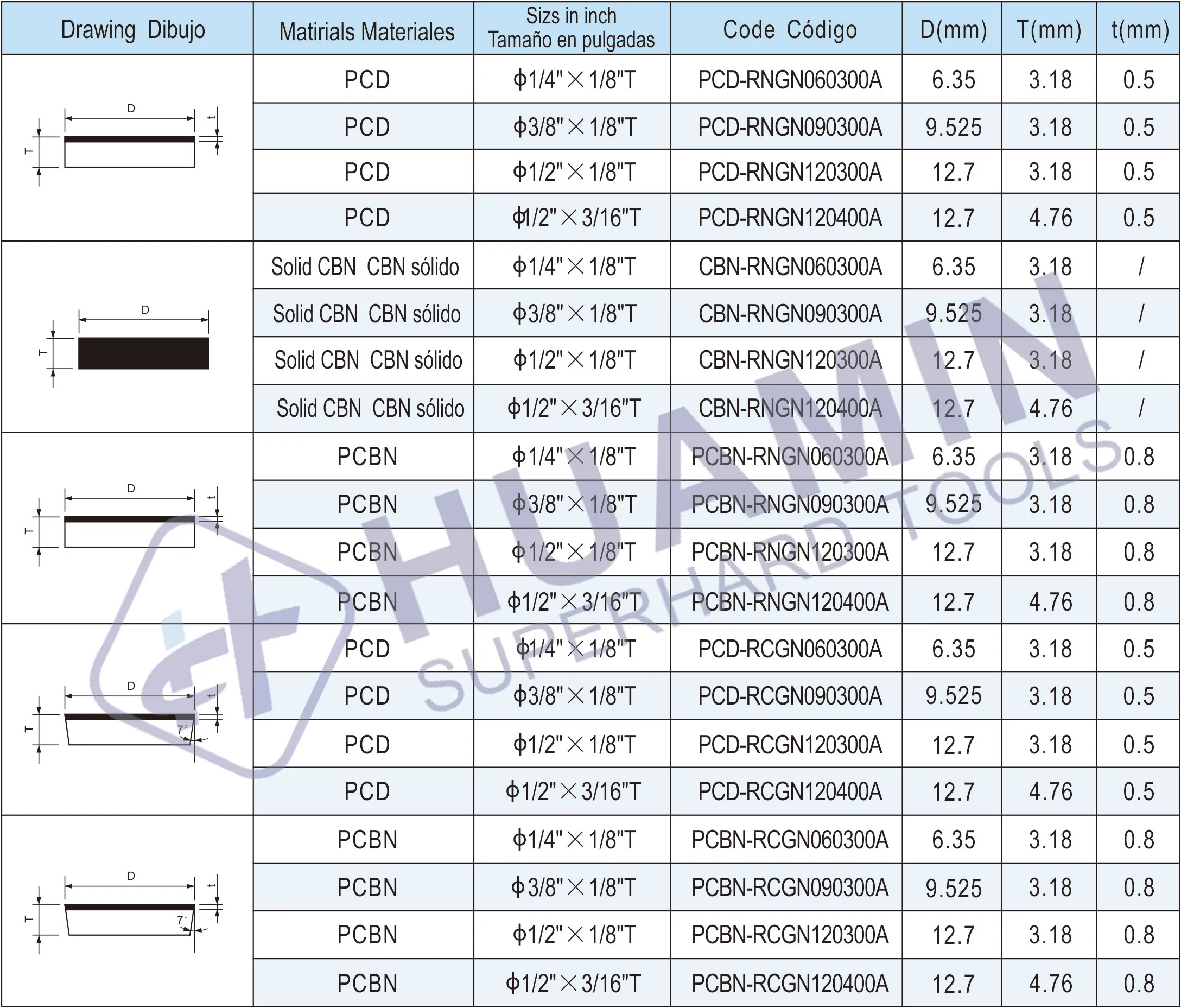

Product Paramenters

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图3)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图4)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图5)

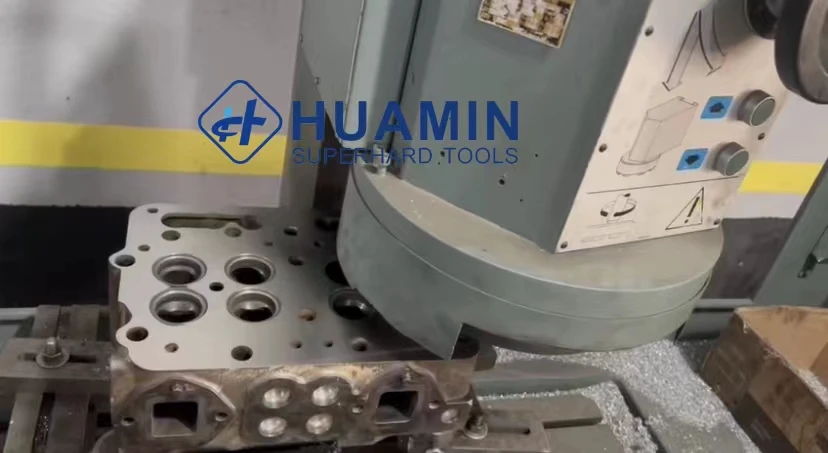

Using Effects

For the cast iron cylinder head and cylinder block, Huamin recommends CBN tool milling, there are solid CBN inserts RNGN and full veneer RNGN/RCGN, two structures.

For aluminum alloy cylinder head and cylinder block, Huamin recommends PCD tool milling, mainly full-veneer RNGN and RCGN.

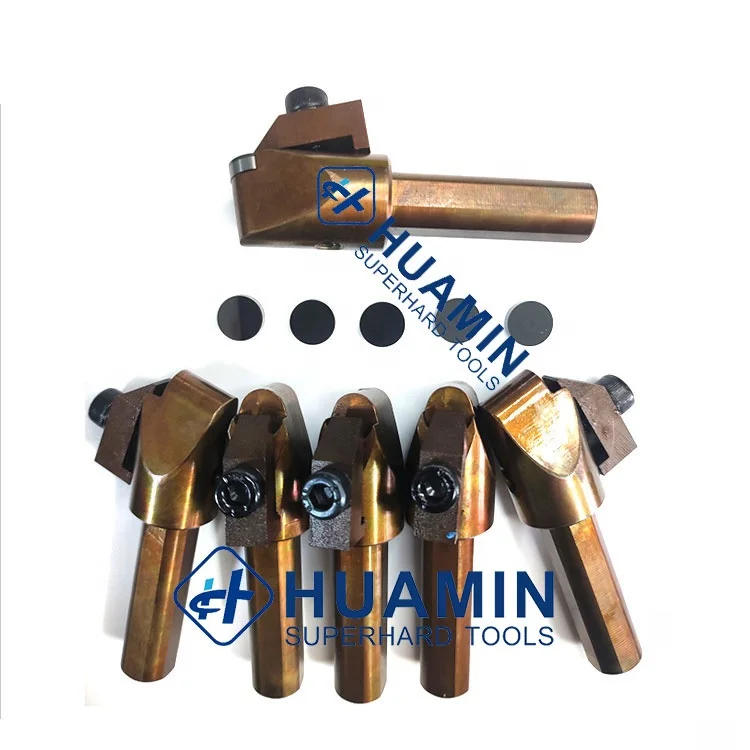

At the same time, a matching milling tool holder is provided, which has the advantages of high precision, high efficiency and long life.

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图6)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图7)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图8)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图9)

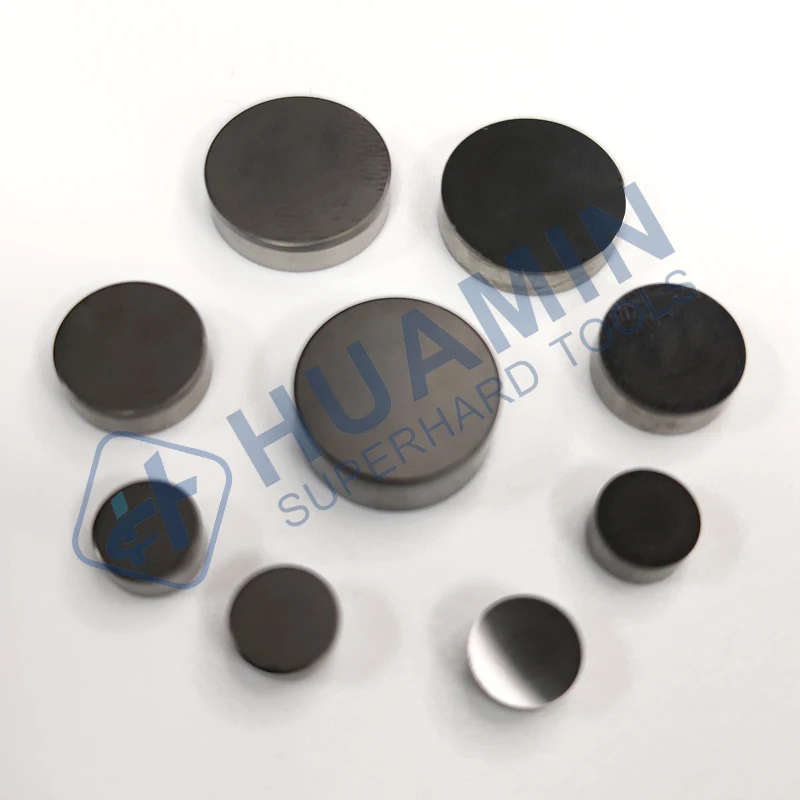

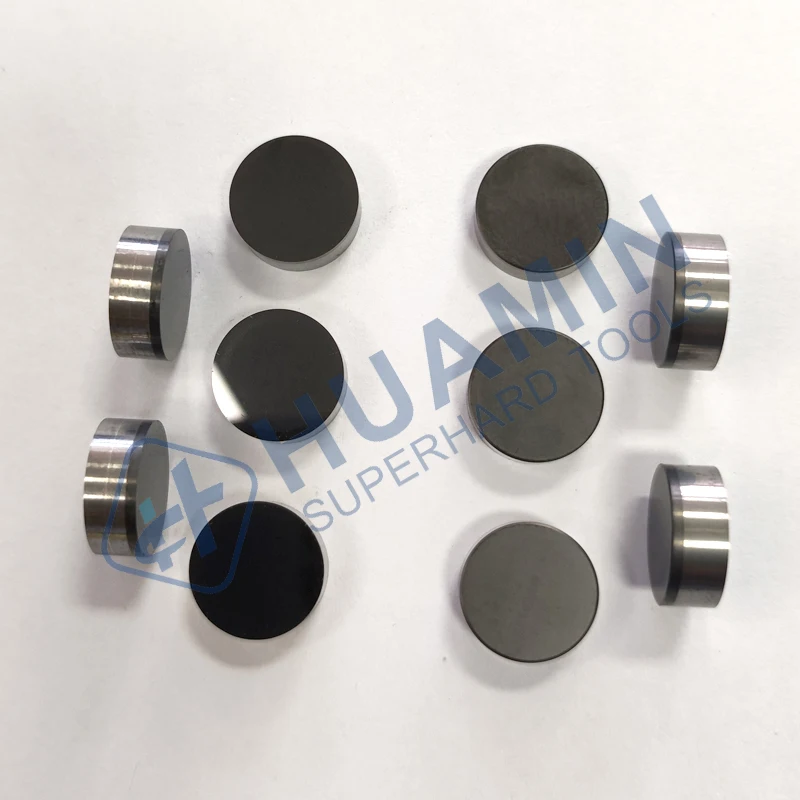

Details Images

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图10)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图11)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图12)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图13)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图14)

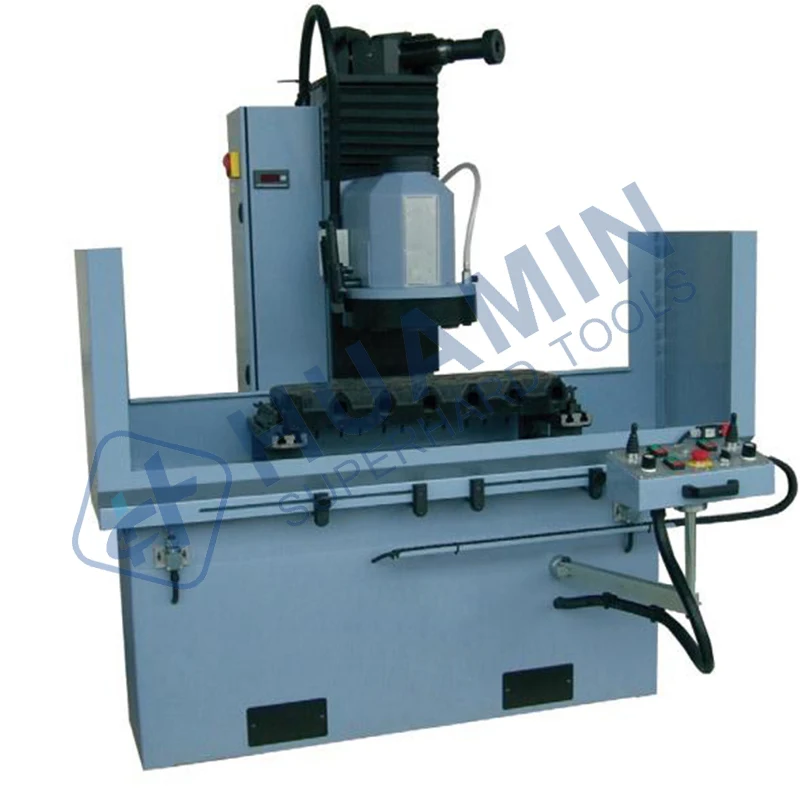

Equipment

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图15)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图16)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图17)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图18)

Company Profile

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图19)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图20)

Certifications

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图21)

PCD tool CBN insert RNGN0903 RNGN1203 for Repair milling engine cylinder head plane(图22)

FAQ

Q：How about the payment methods?A:1)Recommending:Trade Assurance online order. It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on. 2) TT by Proforma Invoice with Bank details. 3)Paypal and Western Union.Q：Can you offer the sample firstly?A:Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.Q：How long is your delivery time?A:For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.Q：Can you supply non-standard cutting tools/PDC cutter/etc?A:Of course, we can provide you with tailor-made services according to your specific requirements.Q：Can we get the after-sale service?A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etcAny other question, kindly feel free to let me know.
