Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter

Full Face PCD Point Grooving Inserts Diamond Boring Tools Turning Thread Tool for Carbide Roller Alloy Parts Processing PCD
turning and milling tools for processing carbide rolls PCD is a synthetic, extremely hard, interlocking mass of randomly oriented
diamond. Particles in a metal matrix. It is produced by selected co-sintering Diamond particles at high pressure and temperature.
Polycrystalline diamond (PCD) is used in many cutting operations as a replacement for single crystal diamonds. Their The
advantages are in continuous cutting and extreme wedge angle geometry cases. The right type of PCD for the job at hand, polished
cut surfaces and the finest ground cutting edges are important features of our tools. The range of PCD tools, on the one hand,
includes drills, milling cutters and reamers, as well as ISO-indexable inserts.

Huamin roll engraving cutter are made of imported element six diamond material, vacuum welded, and edge grinding with high-precision equipment, which ensures the consistency of dimensional accuracy and meets the requirements of different lettering depths. Various specifications and forms can be produced and customized.

Cutting Parameters： N=2800RPM；ap=0.5-1.0mm ； Fr =depend on the customers' needs, it should be as small as possible when the rolls hardness is higher.

Product Description

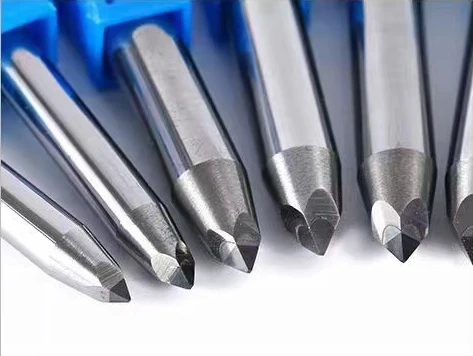

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图1)

Product Name	Diamond engraving cutter
Material	Diamond
Processing procedure	Roughing and finishing are available
machining workpiece	Carbide Rolls
Advantage	Wear resistance, long life, stable quality
Package	1 pcs/box

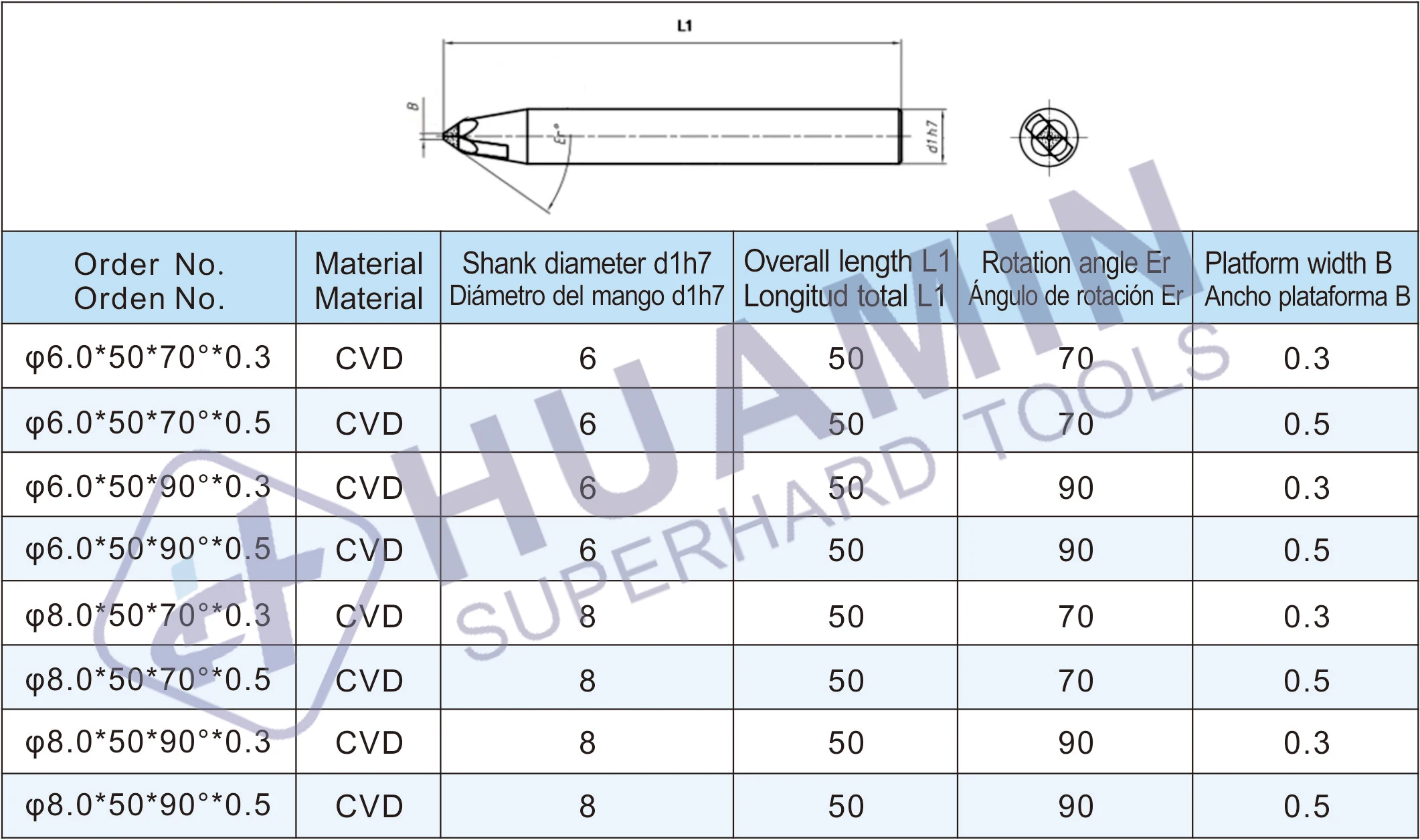

Product Paramenters

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图2)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图3)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图4)

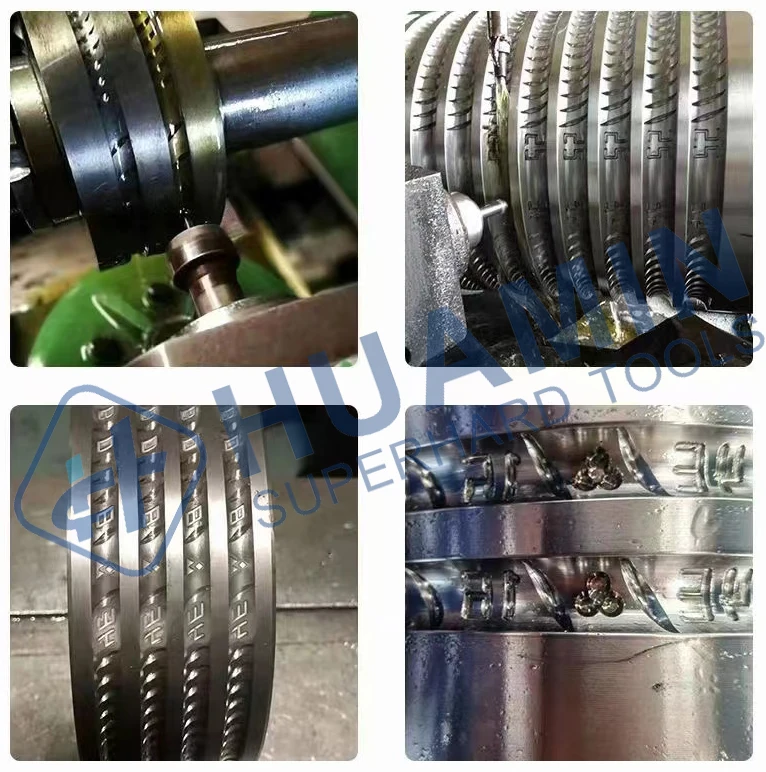

Using Effects

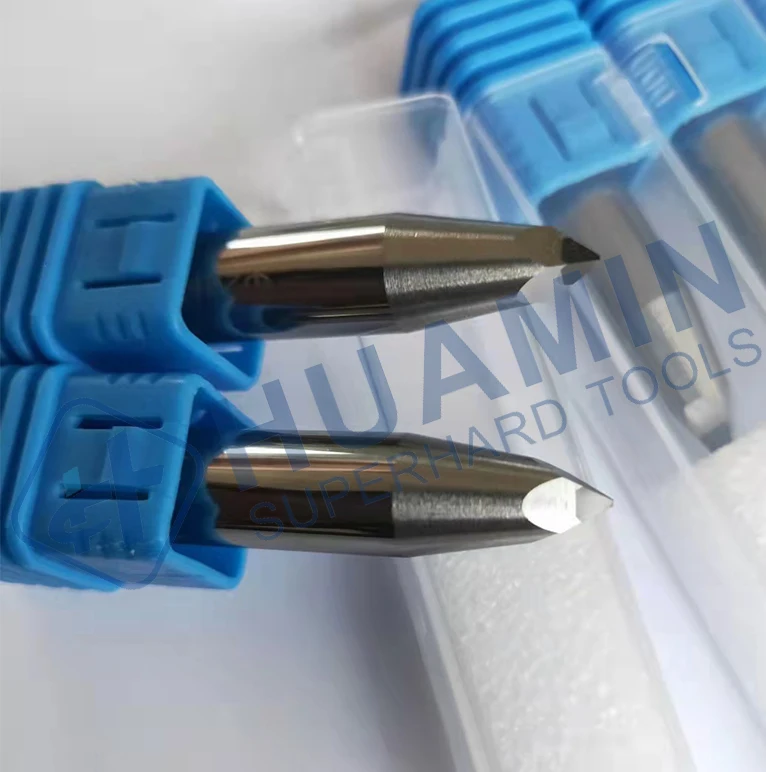

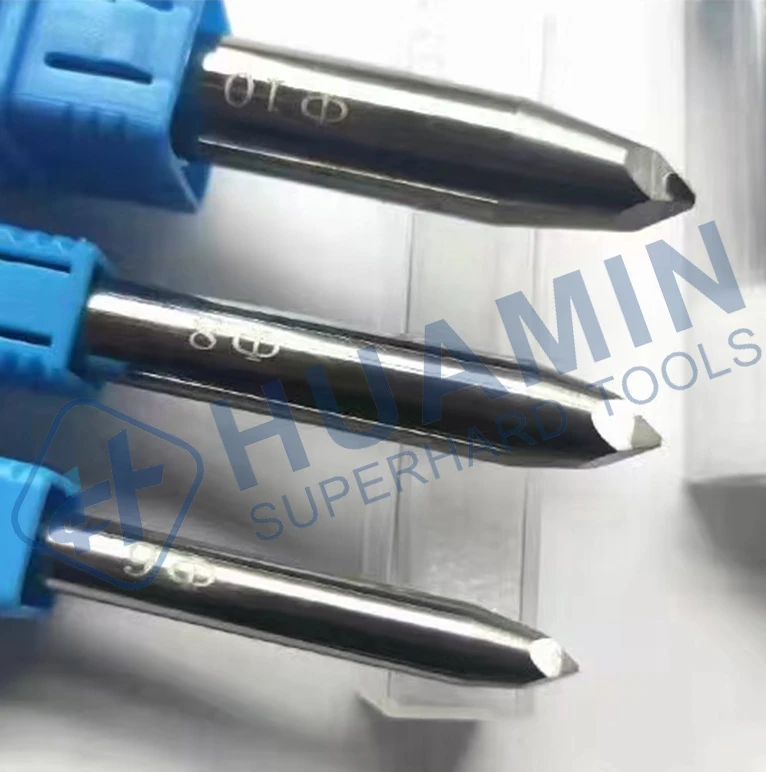

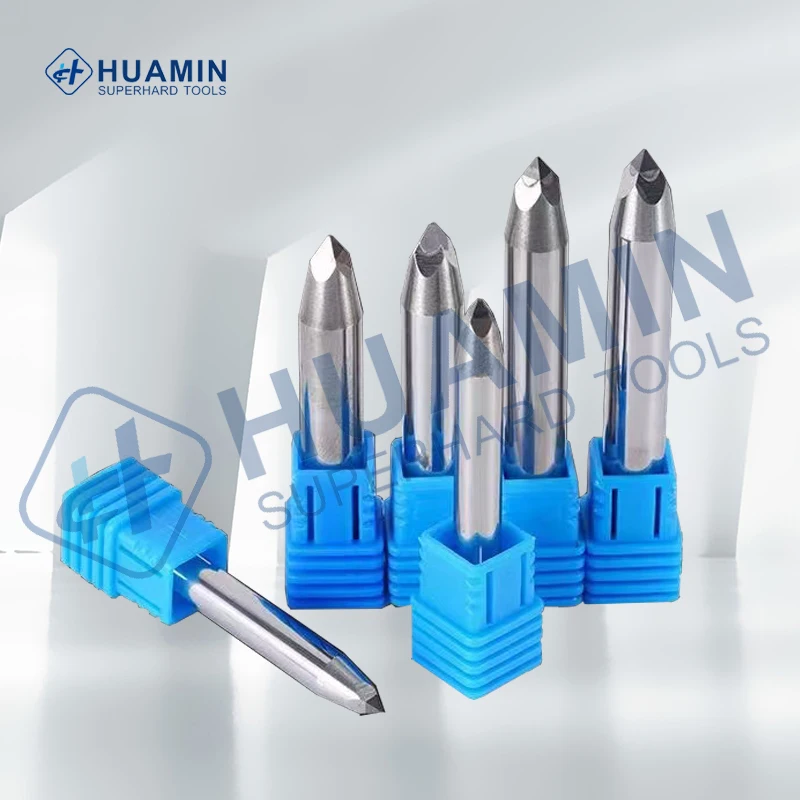

Whether it is a new cemented carbide roll or a repaired cemented carbide rolling ring, diamond engraving cutter to be used.There are two types of diamond engraving knives: PCD engraving tools and CVD engraving tools. The conventional diameters of diamond engraving cutter are 6mm and 8mm, the common angles are 70 degrees and 90 degrees, and the width of the tip is 0.3 and 0.5, and other sizes can be customized.

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图5)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图6)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图7)

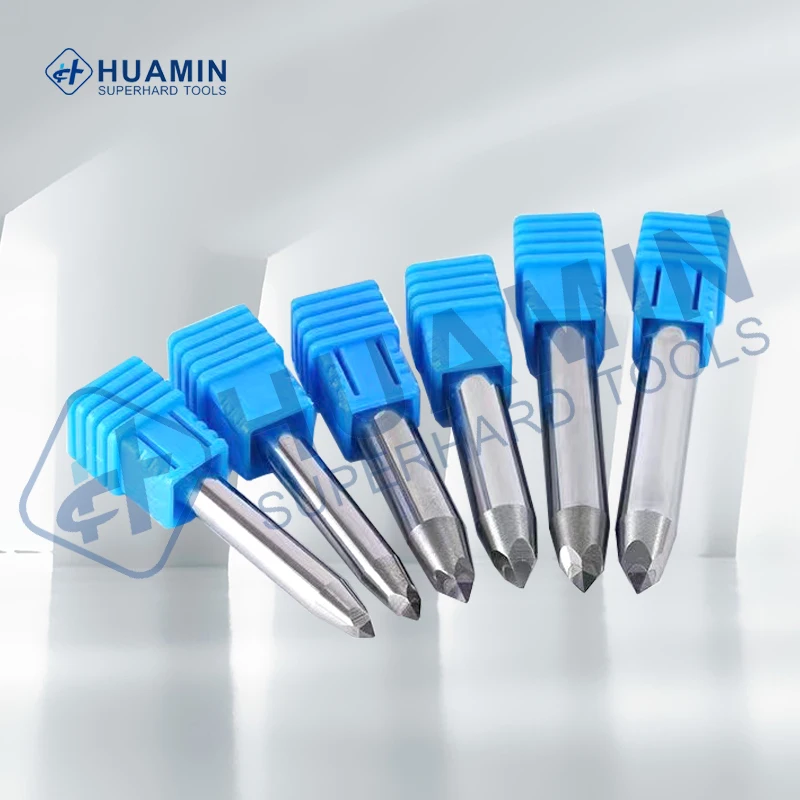

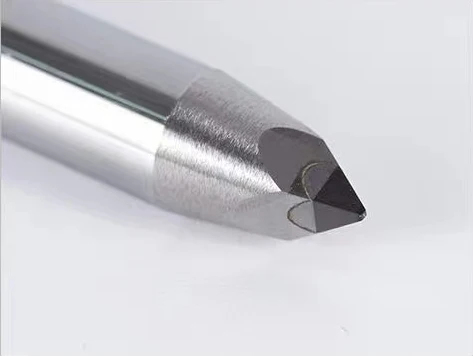

Details Images

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图8)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图9)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图10)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图11)

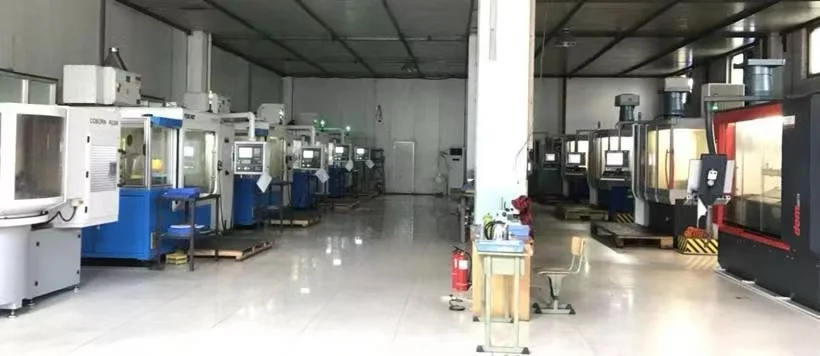

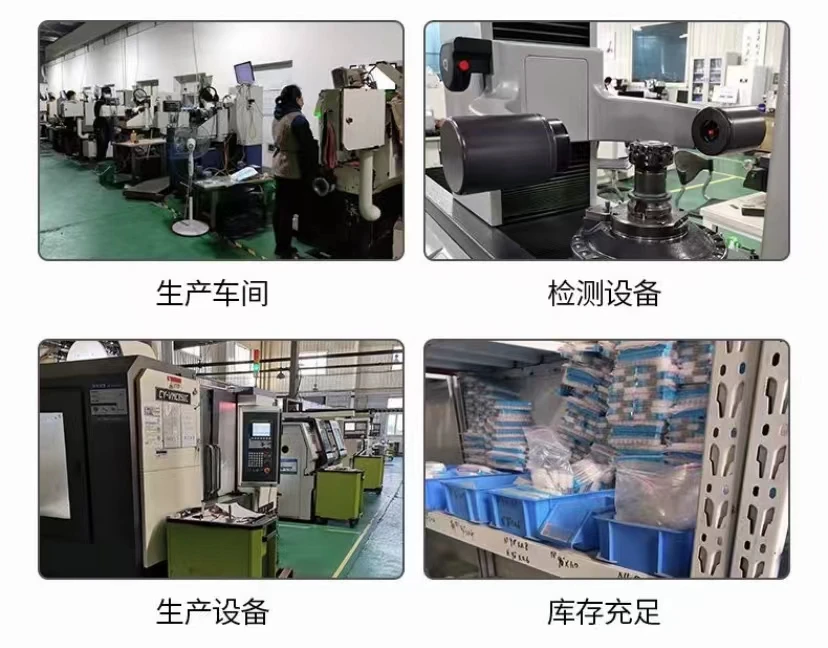

Company Profile

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图12)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图13)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图14)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图15)

Certifications

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图16)

Diamond Pcd Tools Carbide Ring Engraving Carbide Roll Engraving with Diamond Engraving Cutter(图17)

FAQ

Q：How about the payment methods?A:1)Recommending:Trade Assurance online order. It is the most safety way for your payment and goods delivery.Supporting:TT, L/C,E-CHECKING,PAY LATER and so on. 2) TT by Proforma Invoice with Bank details. 3)Paypal and Western Union.Q：Can you offer the sample firstly?A:Yes, we can provide the best quality samples for you to test for free, but the shipping cost is borne by the buyer.Q：How long is your delivery time?A:For samples, it usually takes 2-3 days, for bulk order quantity, we will give you the exact time according to your specific order quantity.Q：Can you supply non-standard cutting tools/PDC cutter/etc?A:Of course, we can provide you with tailor-made services according to your specific requirements.Q：Can we get the after-sale service?A:Yes,we have professional after-sale service for you,including sample changes,product problem solving solution,prompt feedback online service,etcAny other question, kindly feel free to let me know.
