Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel

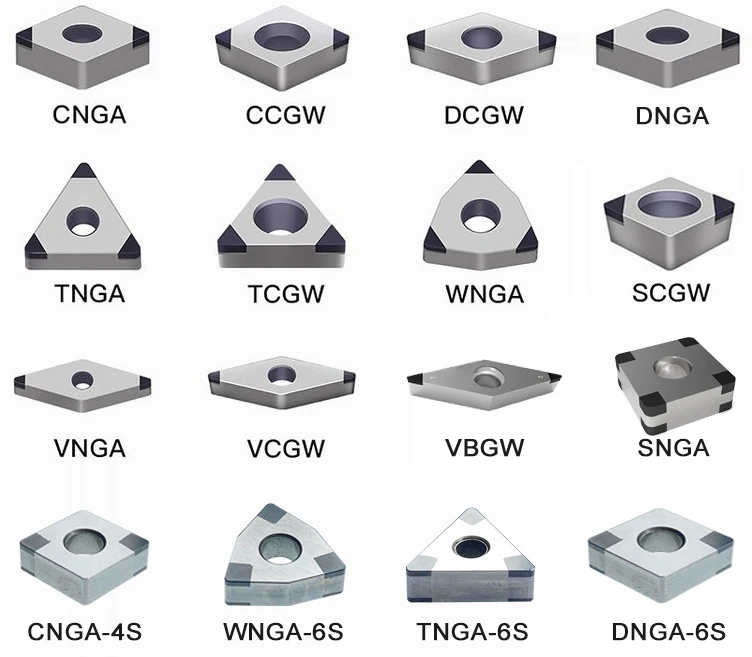

The conventional models areCNGA120404*120408*120412，DNGA150404*150408*150412, DNGA150604*150608*150612, TNGA160402*160404*160408*160412*160416, WNGA080404*080408*080412, VNGA160402*160404*160408*160416, SNGA120402*120404*120408*120412, CCGW060202*060204*060208, CCGW09T302*09T304*09T308, CCGW120404*120408*120412, DCGW070202*070204*070208, DCGW11T302*11T304*11T308,TCGW090204*090208, TCGW110202*110204*110208, TCGW16T304*16T308.

Among them, CNGA, DNGA, TNGA, WNGA, and VNGA 5 models can be welded on both sides, with more cutting edges, and can accept continuous turning and intermittent turning of hard steel (above 50HRC). ISO standard models do not need to replace the tool holder.Fast delivery.

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图1)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图2)

Product Description

Product Name	CBN insers
Material	CBN
Processing procedure	finishing
model number	CNGA, CCGW, DNGA, DCGW, VNGA, VCGW, VBGW, TNGA, TCGW, TPGW, WNGA, SNGA, etc.
Processing material:	hardened steel cast iron, etc.
Advantage	High Speed Cutting, High Finish, High Efficiency, Reduced Cost

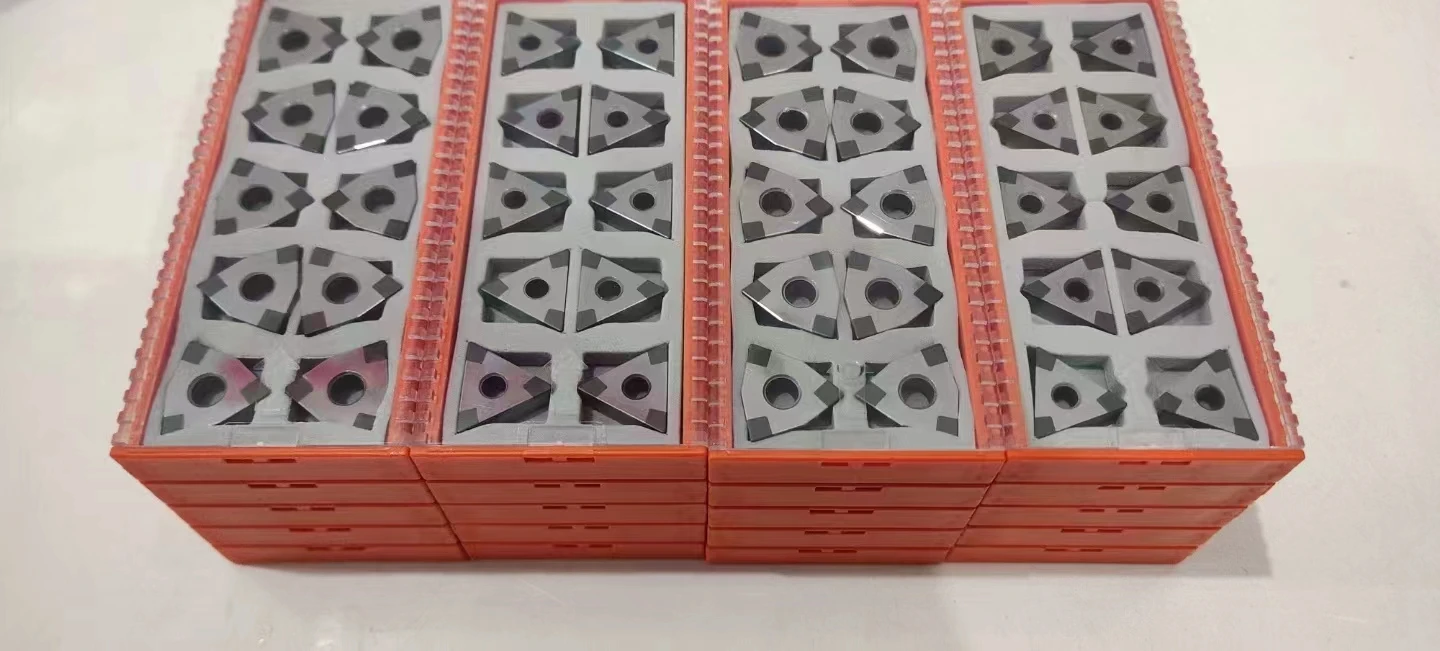

Package	10 pcs/box

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图3)

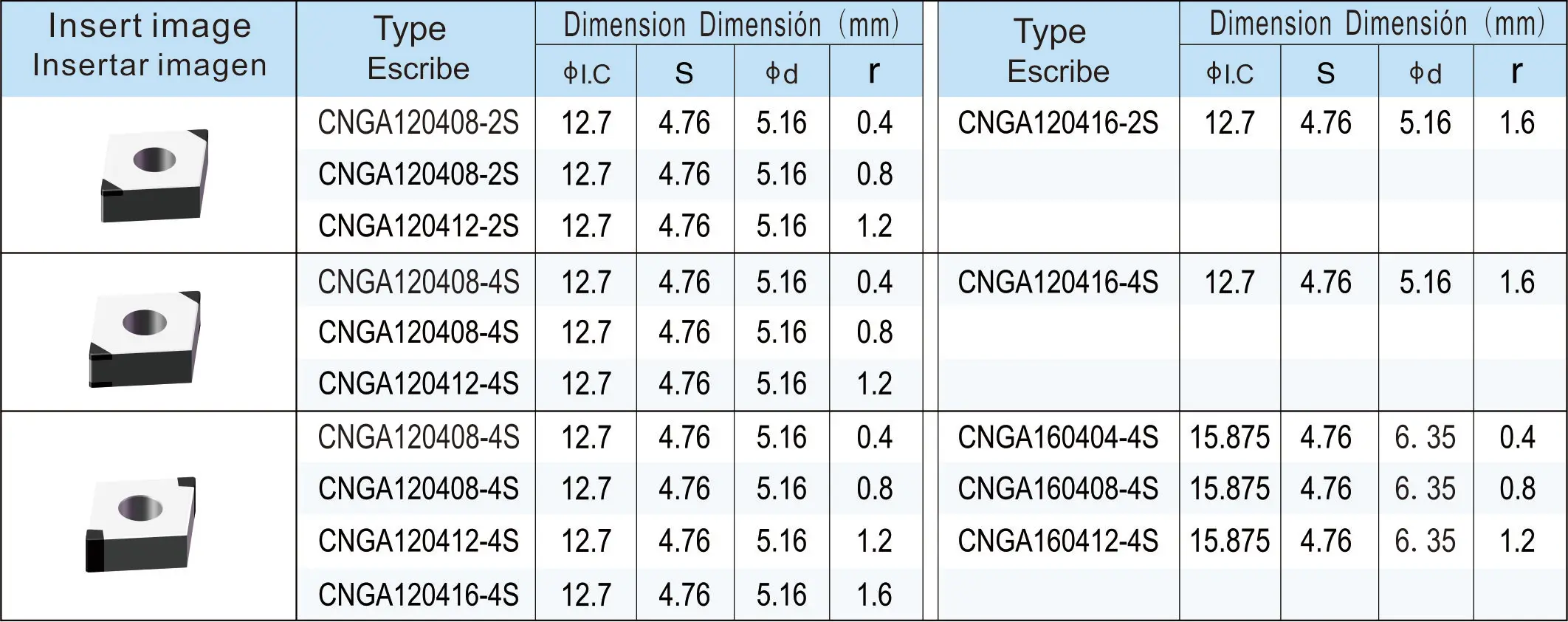

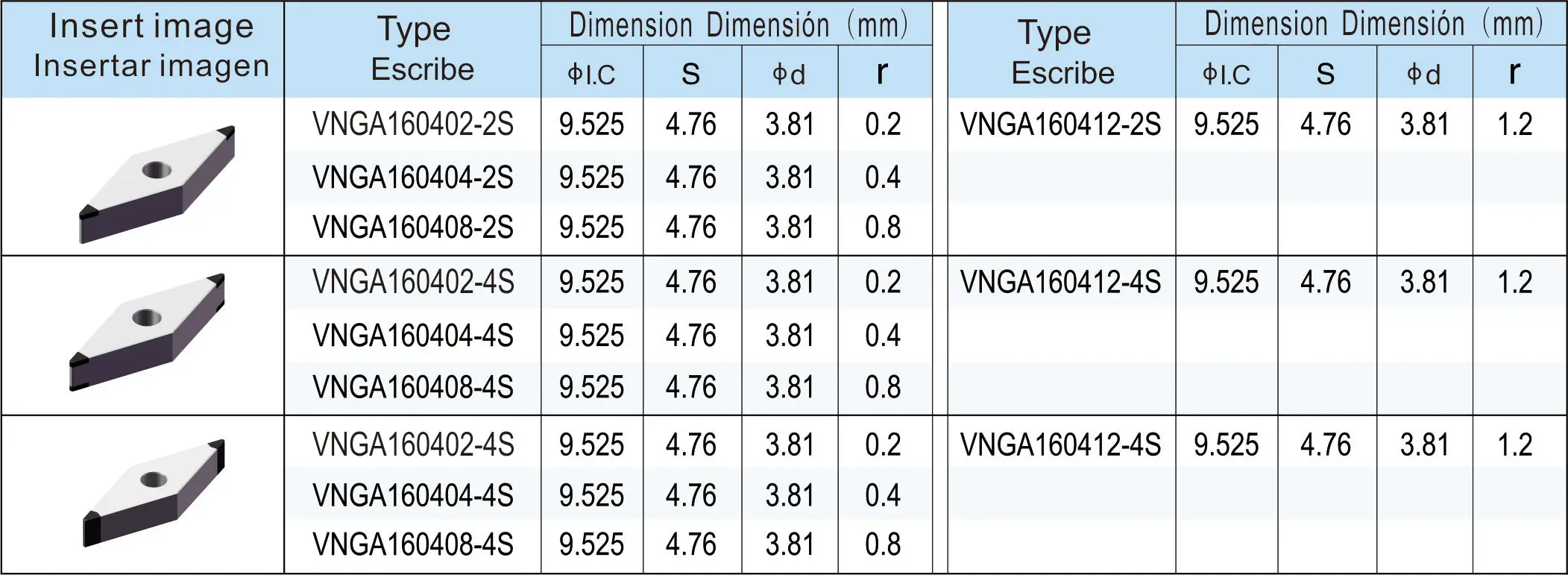

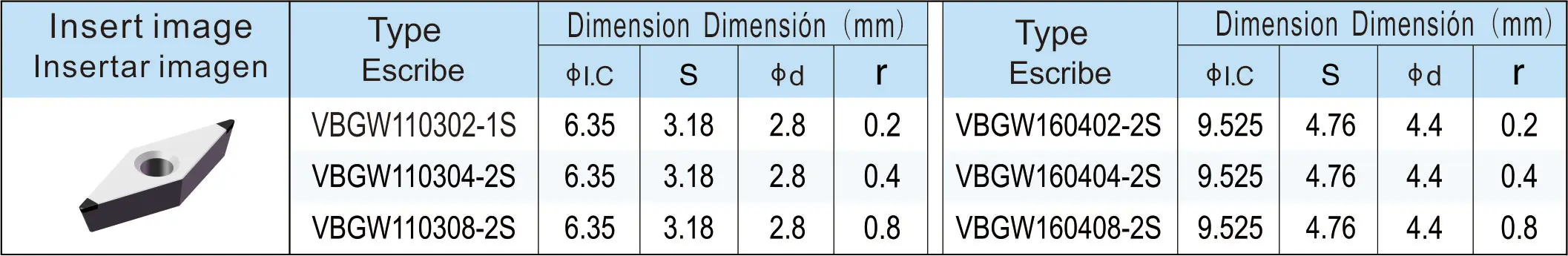

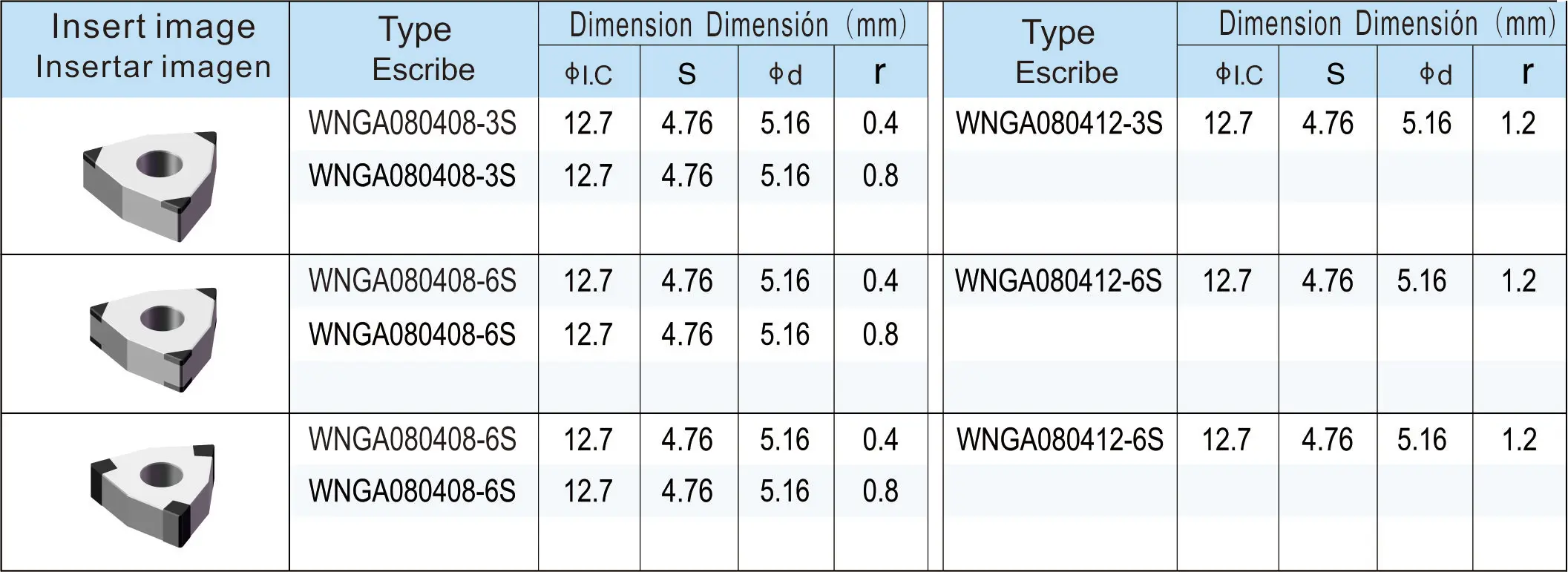

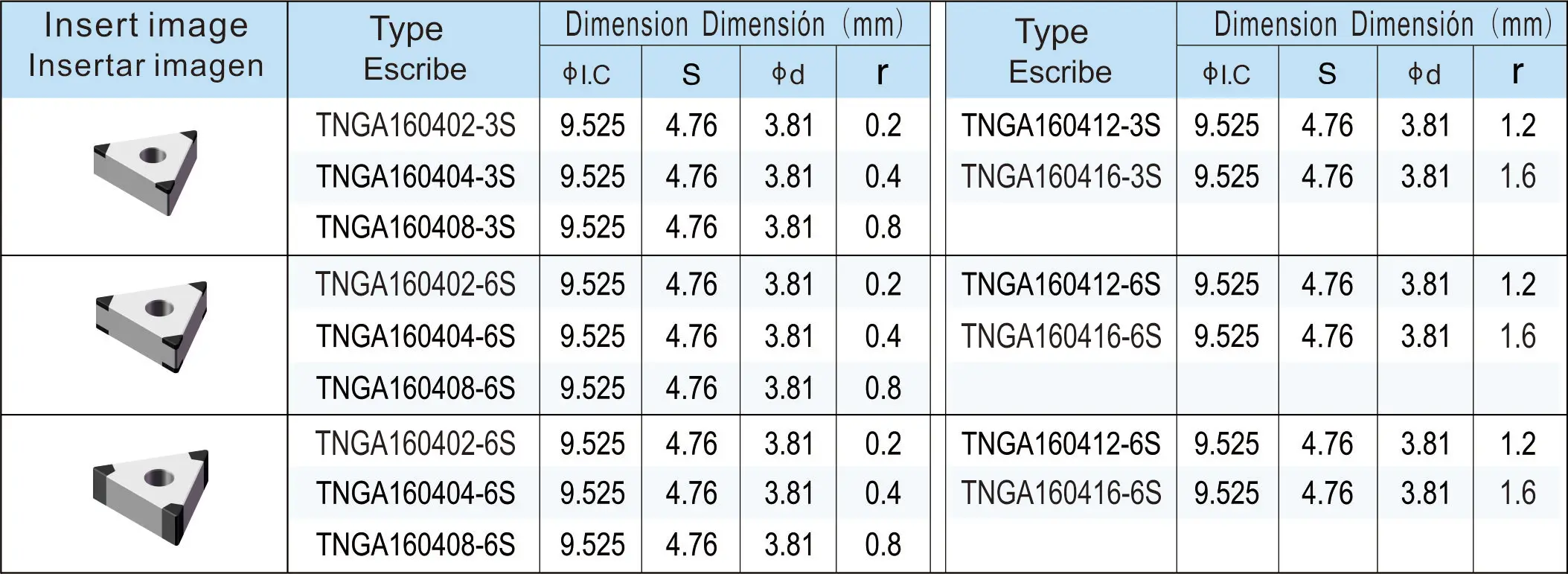

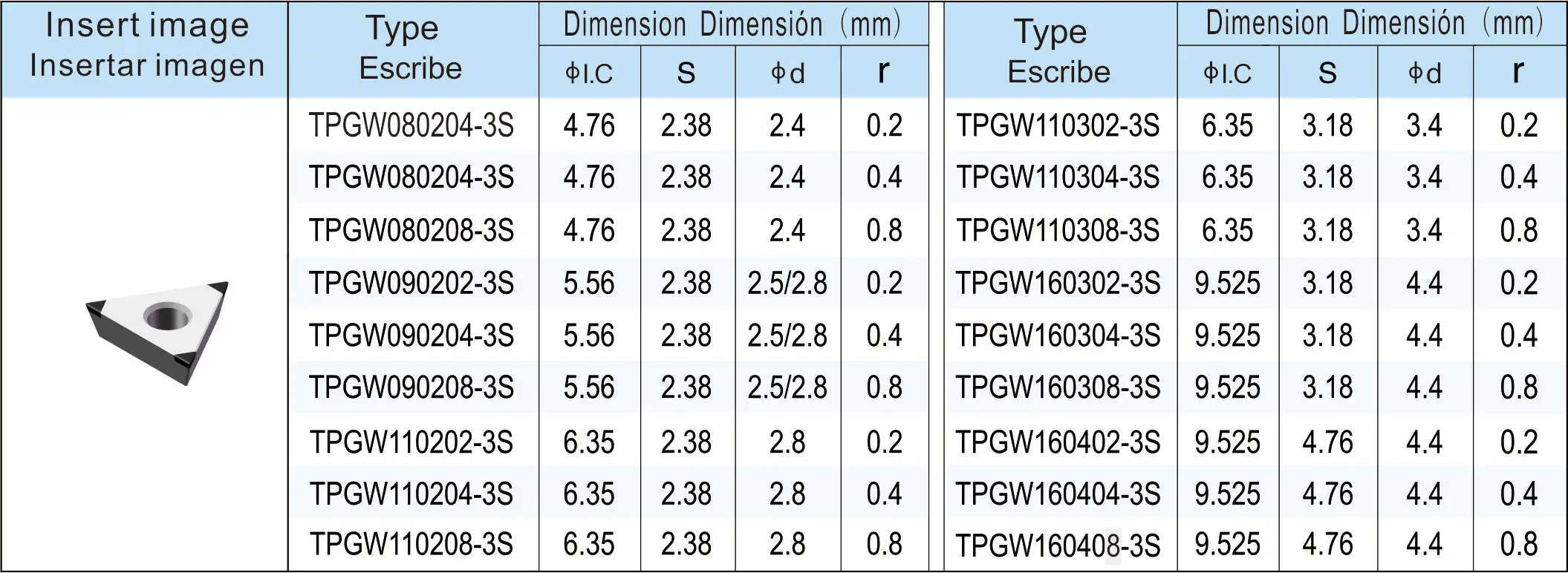

Product Paramenters

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图4)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图5)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图6)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图7)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图8)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图9)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图10)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图11)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图12)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图13)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图14)

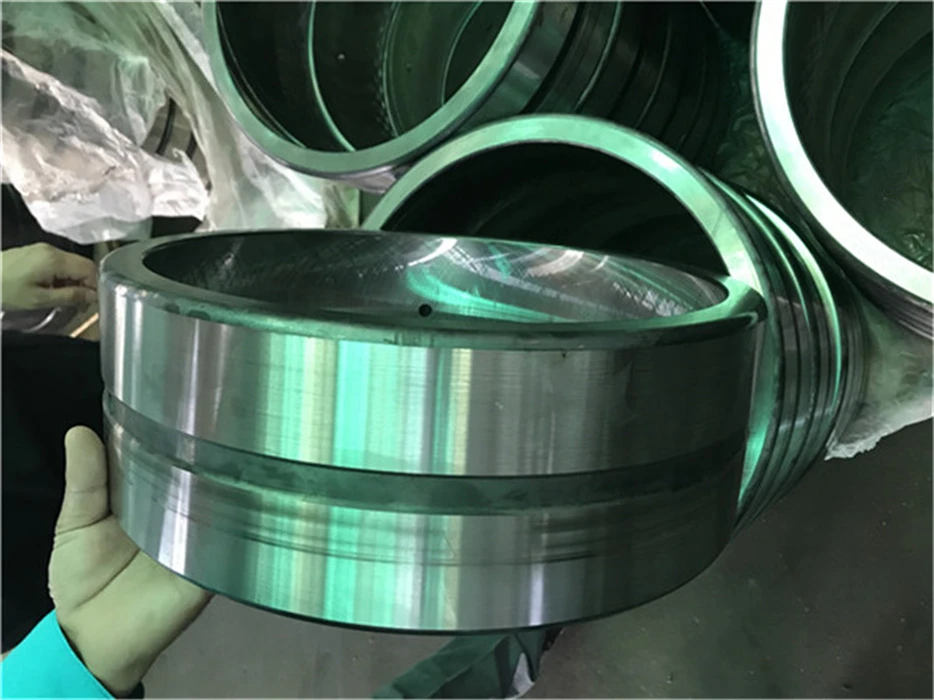

Using Effects

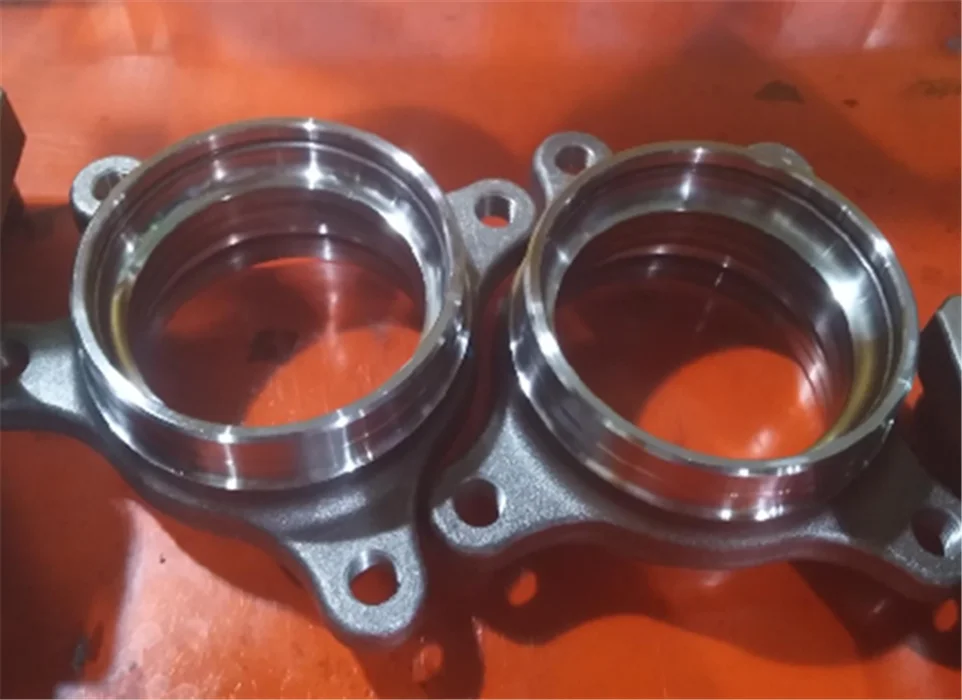

PCBN inserts are very effective in processing steel parts with a hardness above HRC50 after heat treatment, such as die steel, bearing steel, gear steel, tool steel, etc. Common parts include gears, gear shafts, transmission shafts, wind power bearings, hub bearings, precision bearings, Ball screws, ball cages, etc. PCBN inserts have many cutting edges and can be used on both sides. The geometric parameters of PCBN cutting edges are as follows: Relief angle a. =0°, 7°, 11°; Tool tip arc radius rε=0.2mm, 0.4mm, 0.8mm, 1.2mm, 1.6mm.

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图15)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图16)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图17)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图18)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图19)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图20)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图21)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图22)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图23)

Details Images

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图24)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图25)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图26)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图27)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图28)

Insert CBN Tnga160404 Dnga150608 for Turning 58hrc Hard Steel(图29)
