Powder Metallurgy Parts Turning Huamin CBN Insert DCGW0702 DNGA1504 DCGW11T3 DNGA1506 Hot Sale in Br
CBN inserts are suitable for cast iron parts such as brake discs and brake drums that require high production rhythm. The line speed can reach up to 1500m/min.At the same time, it is also very suitable for processing quenched steel parts, such as the finish turning of the inner hole of the gear end face, the raceway of the wind power bearing, the inner hole of the outer circle of the bearing, the turning of the ball cage, the finish turning of the lead screw, and the processing effect of the parts with a hardness above HRC50 is better.
Compared with carbide-coated tools, CBN inserts can process cast iron and hard steel, which not only improves the efficiency significantly, but also increases the service life several times. It is a high-quality choice for high-efficiency machining.
Product Name | CBN insers |
Material | CBN |
Processing procedure | finishing |

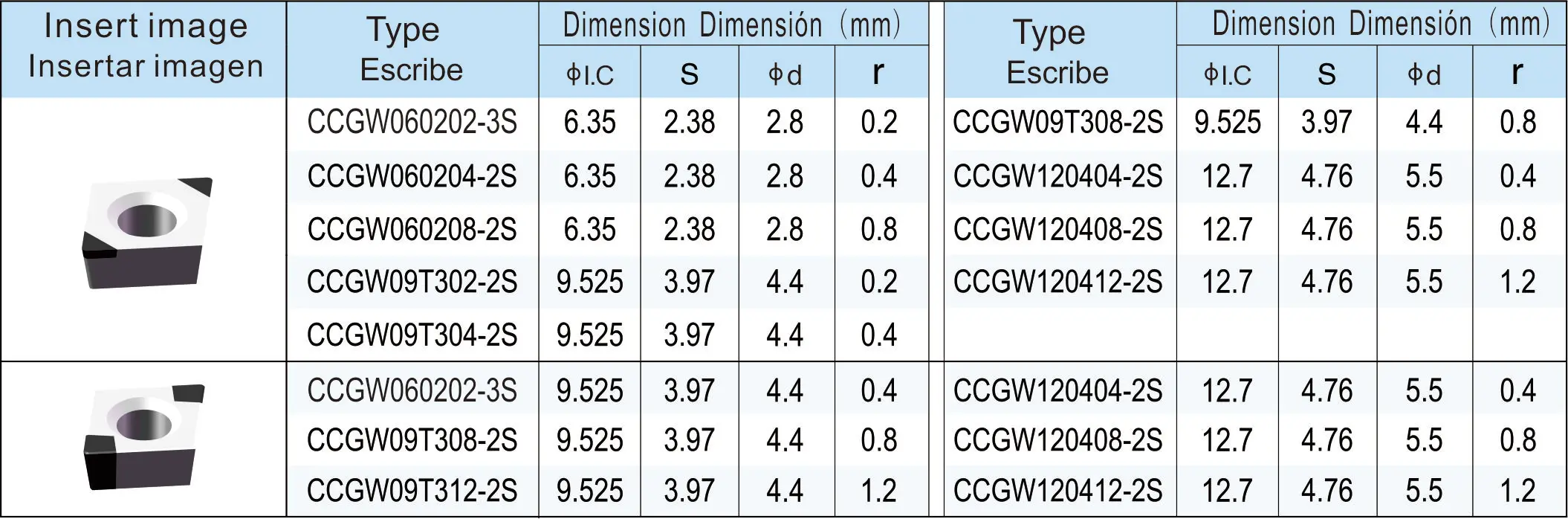

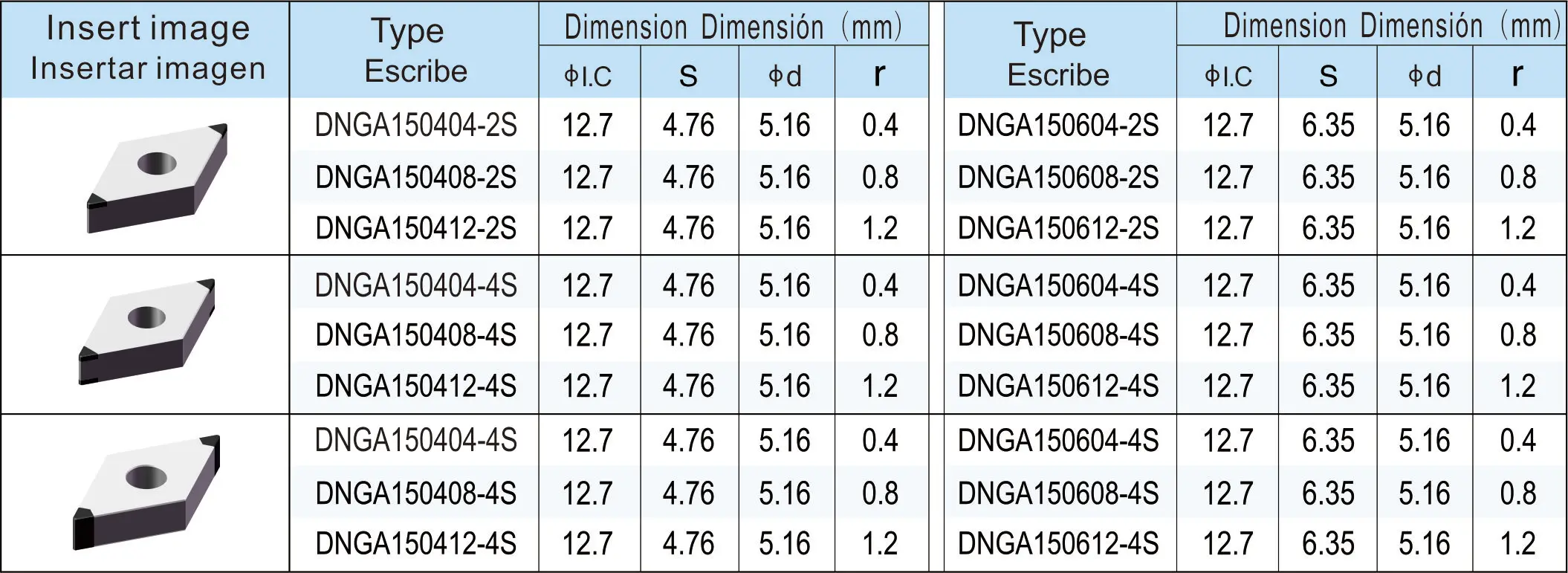

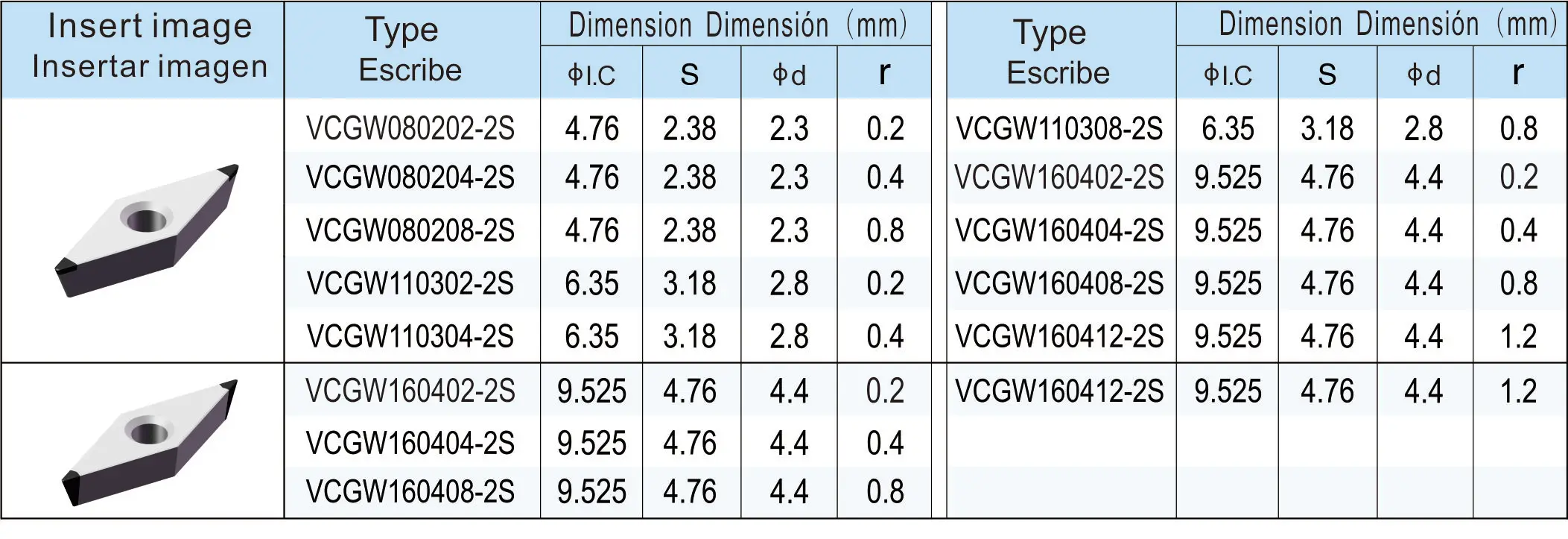

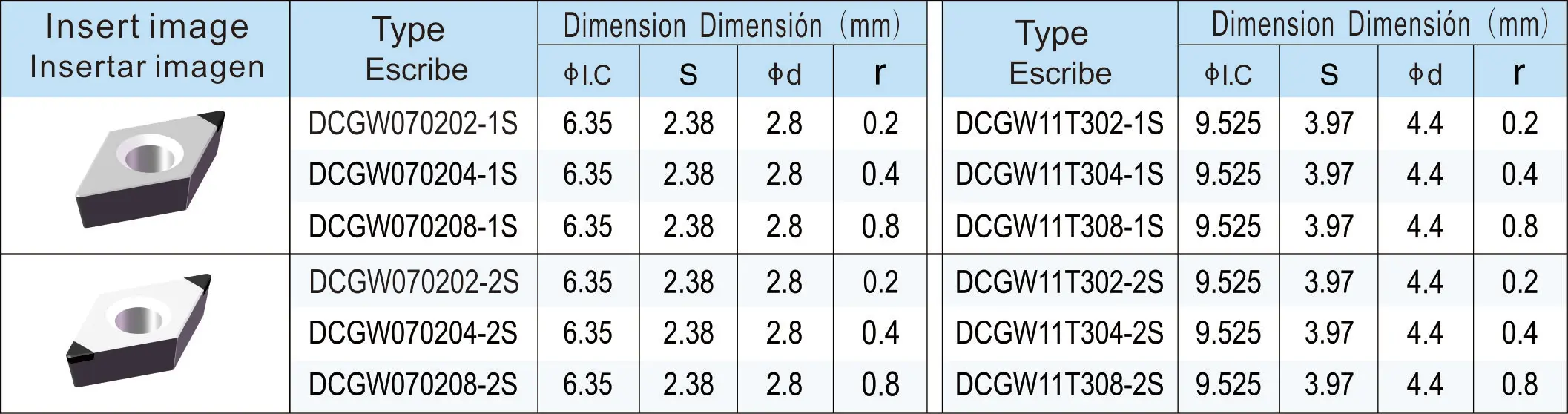

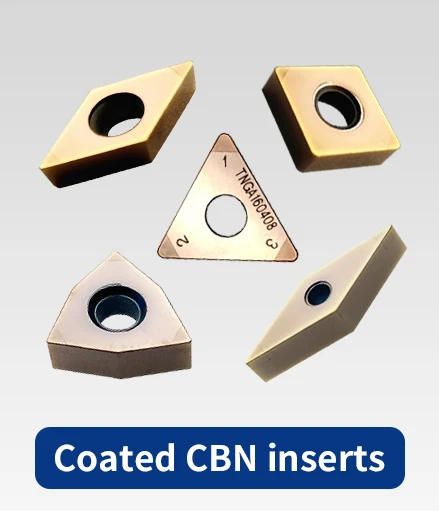

model number | CNGA, CCGW, DNGA, DCGW, VNGA, VCGW, VBGW, TNGA, TCGW, TPGW, WNGA, SNGA, etc. |
Processing material: | hardened steel cast iron, etc. |
Advantage | High Speed Cutting, High Finish, High Efficiency, Reduced Cost |

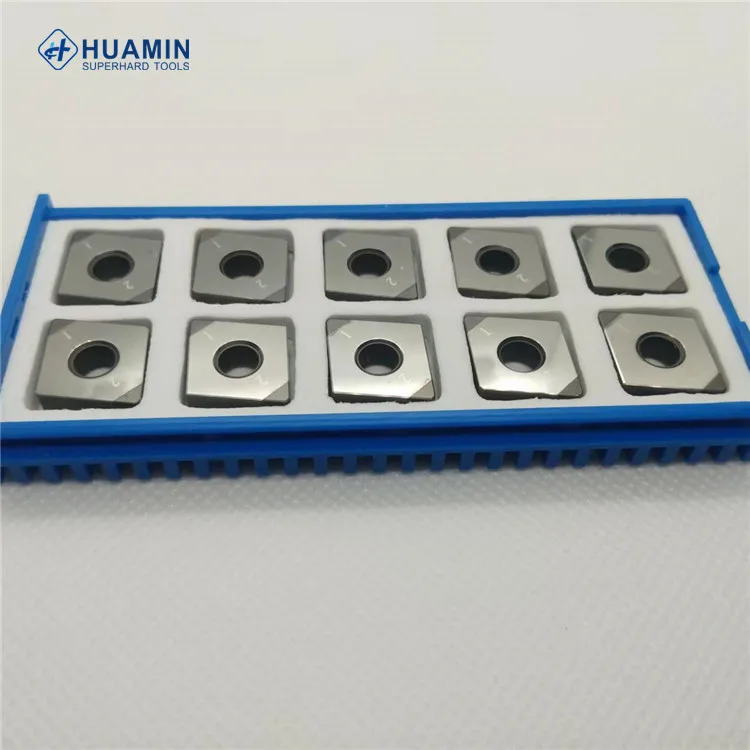

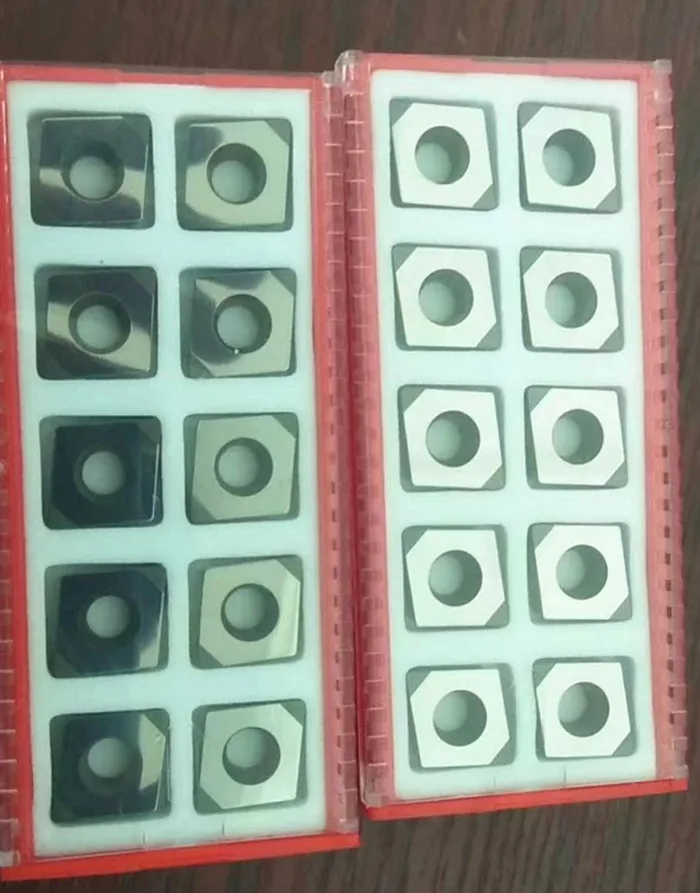

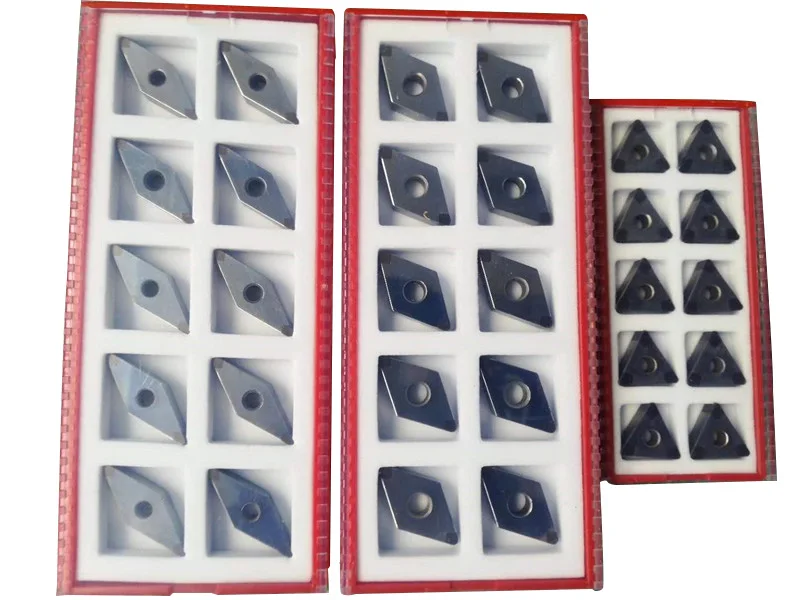

Package | 10 pcs/box |

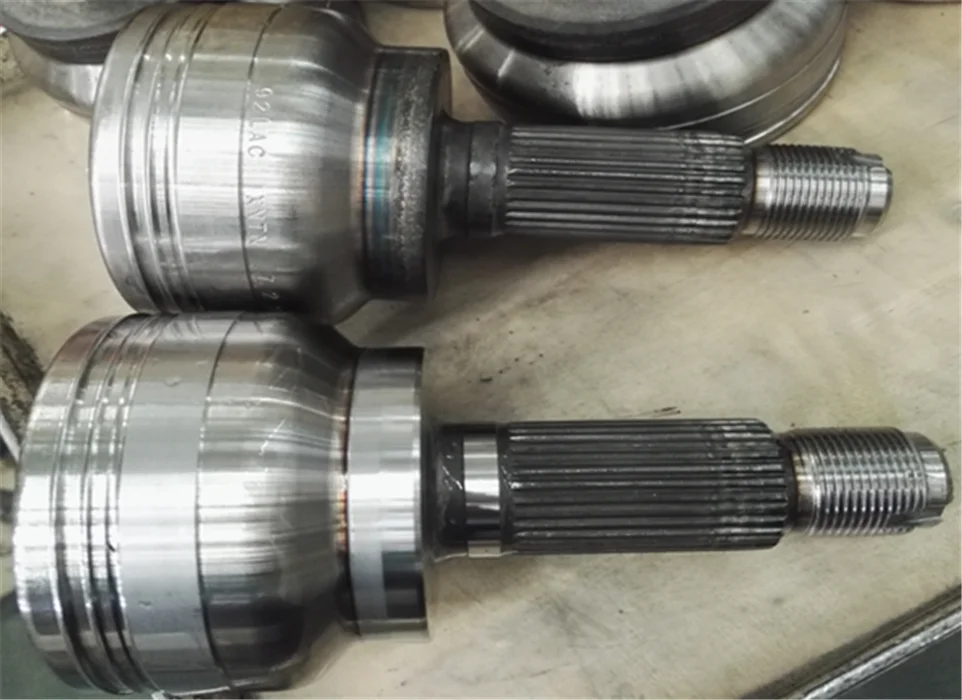

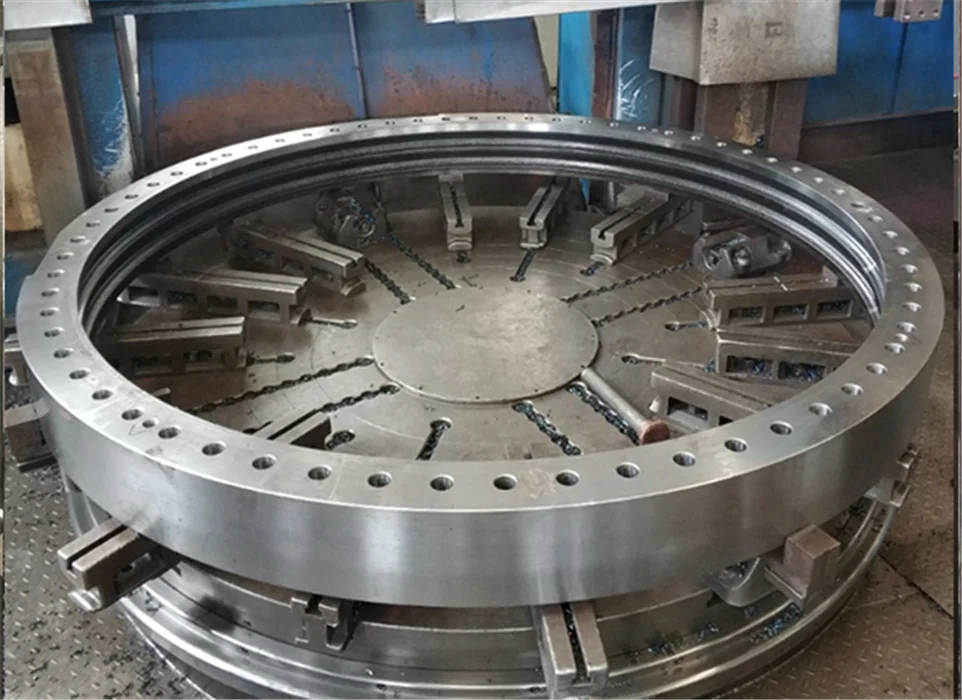

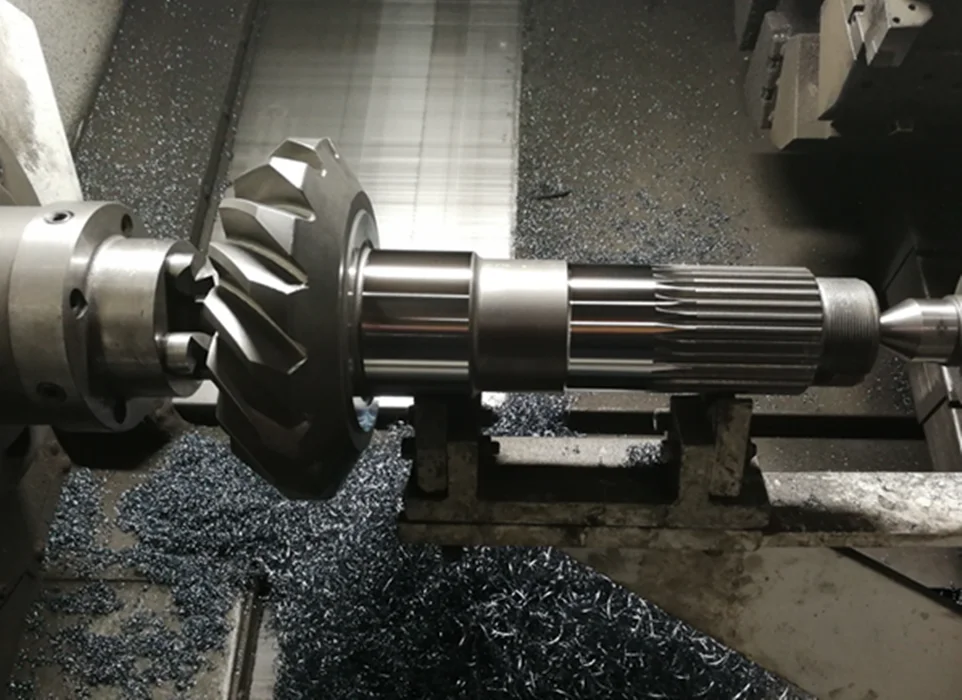

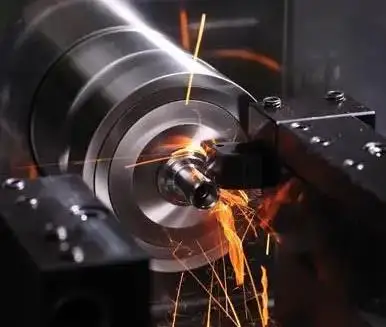

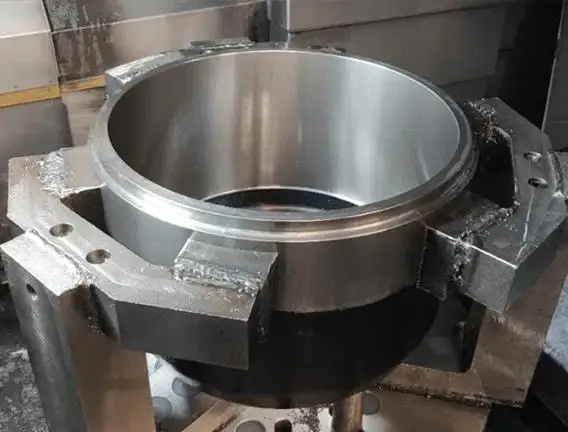

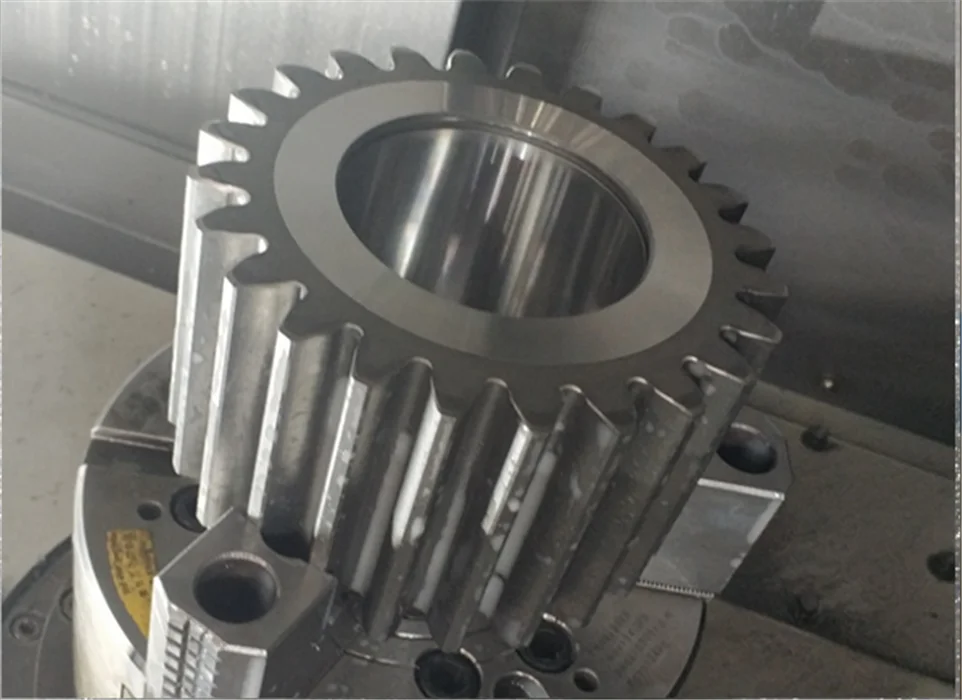

PCBN inserts are very effective in processing steel parts with a hardness above HRC50 after heat treatment, such as die steel, bearing steel, gear steel, tool steel, etc. Common parts include gears, gear shafts, transmission shafts, wind power bearings, hub bearings, precision bearings, Ball screws, ball cages, etc.

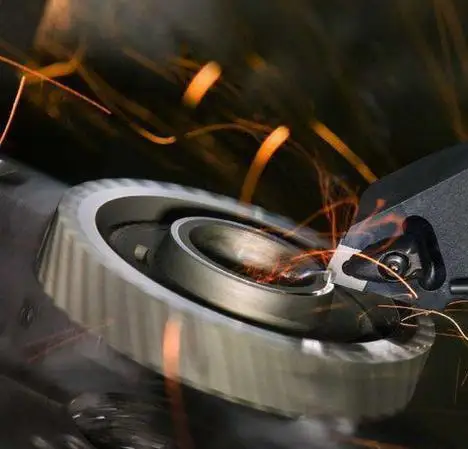

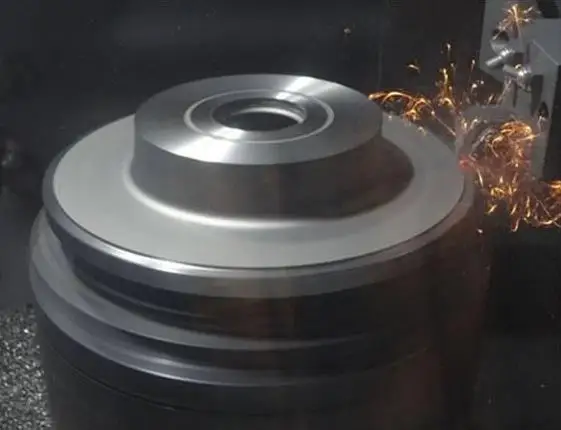

PCBN inserts can also cut gray iron castings at high speed, such as brake discs, brake drums, pulleys, flywheels, compressor cylinders, compressor flanges, turbocharger intermediates, etc.

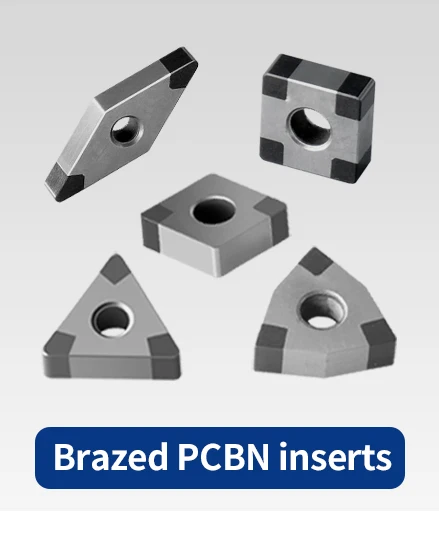

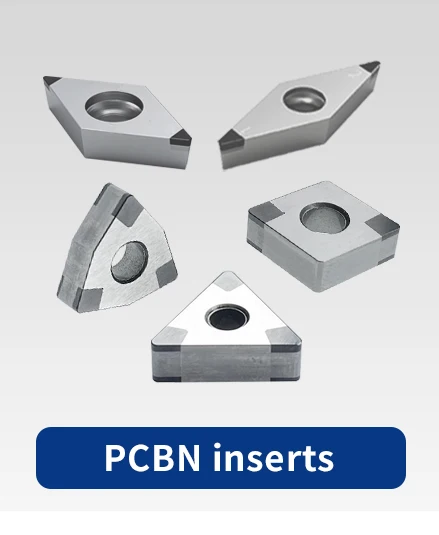

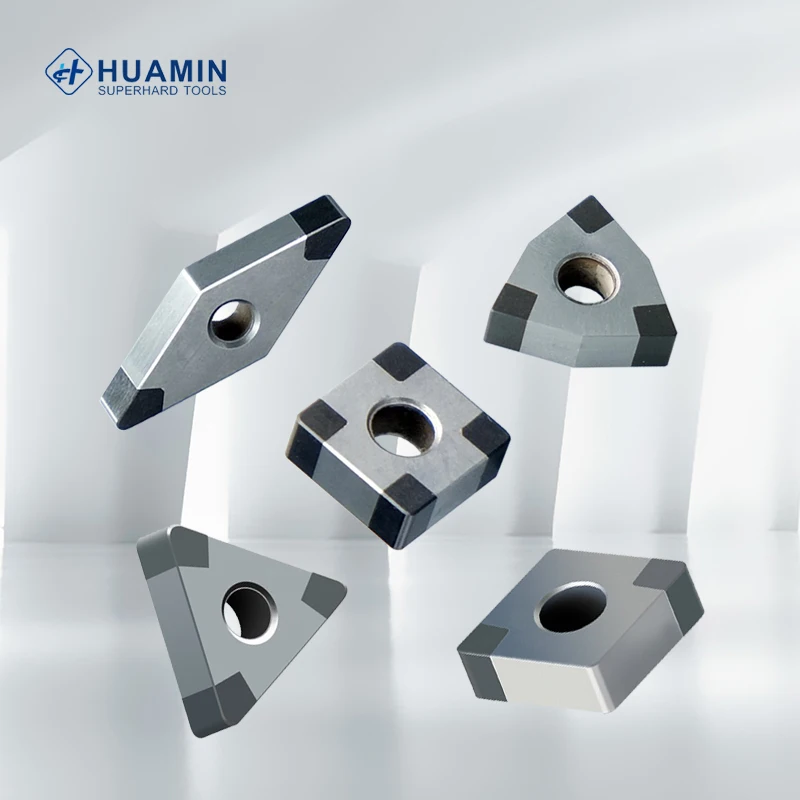

PCBN inserts have many cutting edges and can be used on both sides. The geometric parameters of PCBN cutting edges are as follows:
Relief angle a. =0°, 7°, 11°;
Tool tip arc radius rε=0.2mm, 0.4mm, 0.8mm, 1.2mm, 1.6mm.
