Rolls
Mode:
Capacity:
Application:

  Huamin Superhard Tools mainly provides cutting tools for high-hardness and difficult-to-process rolls, such as rebar rolls,

wire rolls, plate rolls, etc. Huamin Superhard Tools recommends targeted tool materials based on the roll material, hardness

and processing conditions. In the metallurgical steel industry, which is the most difficult to process high-speed steel rolls,

Huamin Superhard Tools occupies more than 60% of the global tool market share and has a good user reputation and

brand value in the overseas roll industry, especially in high-speed steel rolls, carbide rolls, high-alloy high-hardness cast

 iron rolls and their repair and processing. Huamin Superhard Tools has rich tool matching and on-site experience.

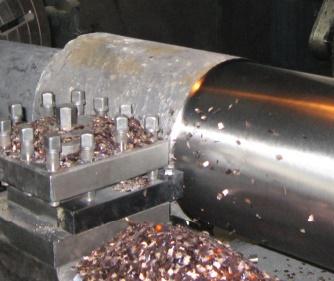

(1)高镍铬合金铸铁轧辊加工:采用华敏整体聚晶CBN刀片可大余量切削,提高生产效率,同时切削性能稳定,性价比高。

轧辊 (2).jpg

工件材质:高镍铬合金铸铁轧辊(硬度HSD80)
刀片型号:RNMN200800
切削参数:ap=4mm,Fr=0.7mm/r,Vc=45m/min
加工方式:干式切削

刀具材质

切削速度

刀具寿命

最终失效形式

MZT10

45m/min

3件

正常磨损

某品牌CBN

35m/min

2件

破损碎裂

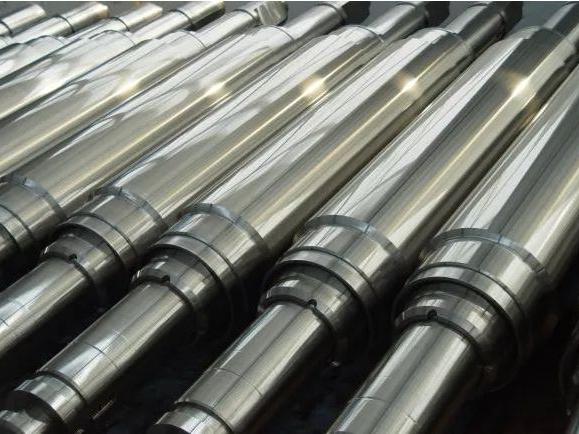

    (2)高速钢轧辊加工:采用华菱整体聚晶CBN刀片相较于某品牌CBN刀具寿命提升1倍。

2 (2).jpg

工件材质:高速钢轧辊,硬度HSD90
刀片型号:RCMX120700
切削参数:Fr=0.2mm/r,Vc=35m/min
加工方式:干式切削

刀具材质

刀具寿命

最终失效形式

MZT30

25槽/刃

正常磨损

某品牌CBN

12槽/刃

破损碎裂

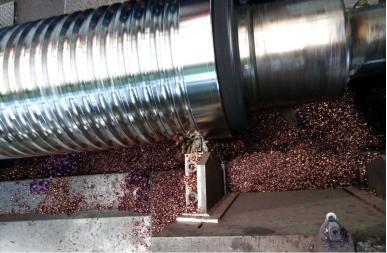

    (3)无限冷硬铸铁轧辊加工:采用华菱整体聚晶CBN刀片相较于传统刀具效率提高2倍,刀具寿命提高3倍。

2 (2).jpg

工件材质:无限冷硬铸铁轧辊,硬度HSD67
刀片型号:MZT10

切削参数:Fr=0.5mm/r,Vc=66m/min,ap=2mm
加工方式:干式切削

刀具材质

效率

刀具寿命

MZT10

提高2倍

提高3倍

硬质合金刀具

/

/
